Description

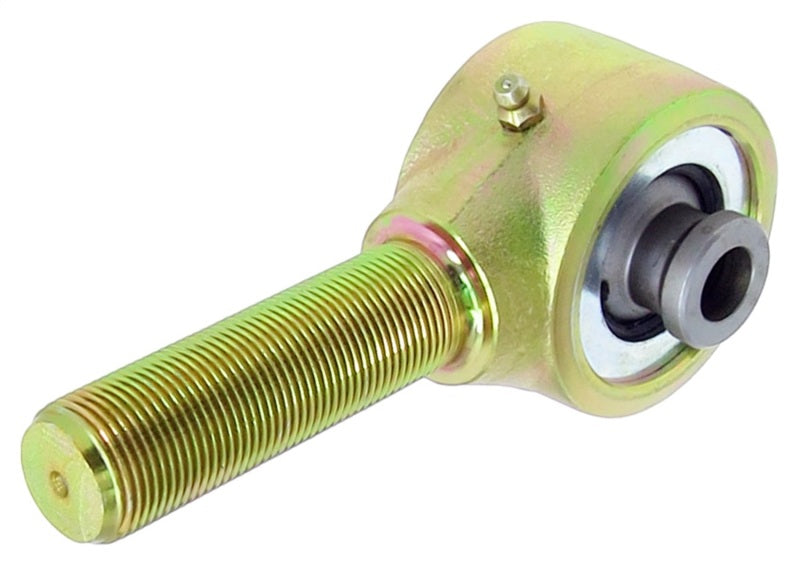

RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is designed to fit the upper lower mounting point on the 2021 and up Bronco's rear trac bar and features a narrow 2 1/2 in. diameter joint body, fitted with a zerk fitting for greasing, 2.3 in. of 1 in.-14 right hand threads on the shank, and a 55mm mounting width ball with a 16mm thru bolt hole. Finished in gold zinc plating.
RockJock 2021+ Bronco Rear Trac Bar Johnny Joint 2 1/2in Narrow 1in-14 RH Threads 55mm x 16mm Ball
No reviews
Regular price
$66.00
Shipping calculated at checkout
Adding product to your cart
Specifications
-
SKU:
ROKRJ-331301-102
- Vendor:
- Product type:
Description
RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is designed to fit the upper lower mounting point on the 2021 and up Bronco's rear trac bar and features a narrow 2 1/2 in. diameter joint body, fitted with a zerk fitting for greasing, 2.3 in. of 1 in.-14 right hand threads on the shank, and a 55mm mounting width ball with a 16mm thru bolt hole. Finished in gold zinc plating.
