Description

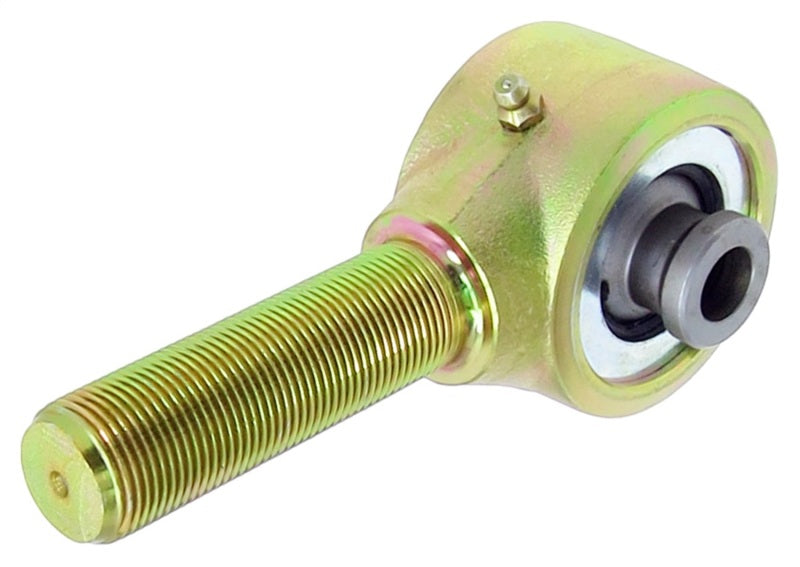

RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is designed to fit the upper lower mounting point on the 2021 and up Bronco's rear trac bar and features a narrow 2 1/2 in. diameter joint body, fitted with a zerk fitting for greasing, 2.3 in. of 1 in.-14 left hand threads on the shank, and a 55mm mounting width ball with a 16mm thru bolt hole. Finished in gold zinc plating.

RockJock 2021+ Bronco Rear Trac Bar Johnny Joint 2 1/2in Narrow 1in-14 LH Threads 55mm x 16mm Ball

Regular price $66.00

Shipping calculated at checkout

Specifications

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Description
RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is designed to fit the upper lower mounting point on the 2021 and up Bronco's rear trac bar and features a narrow 2 1/2 in. diameter joint body, fitted with a zerk fitting for greasing, 2.3 in. of 1 in.-14 left hand threads on the shank, and a 55mm mounting width ball with a 16mm thru bolt hole. Finished in gold zinc plating.
RockJock 2021+ Bronco Rear Trac Bar Johnny Joint 2 1/2in Narrow 1in-14 LH Threads 55mm x 16mm Ball
