• Easy Wiring Solution To Installing A Dedicated Fuel System





• Harness Routing Instructions





• Detailed Colored Wiring Diagram





• Deutsch Connectors





• High Quality Molex Terminals





• Bueler 40/60 Amp Relay





• Protective Expandable Wiring Loom





• Automotive Copper Core Wire with Protective Silicone Coating





• Inline 15 Amp Fuse

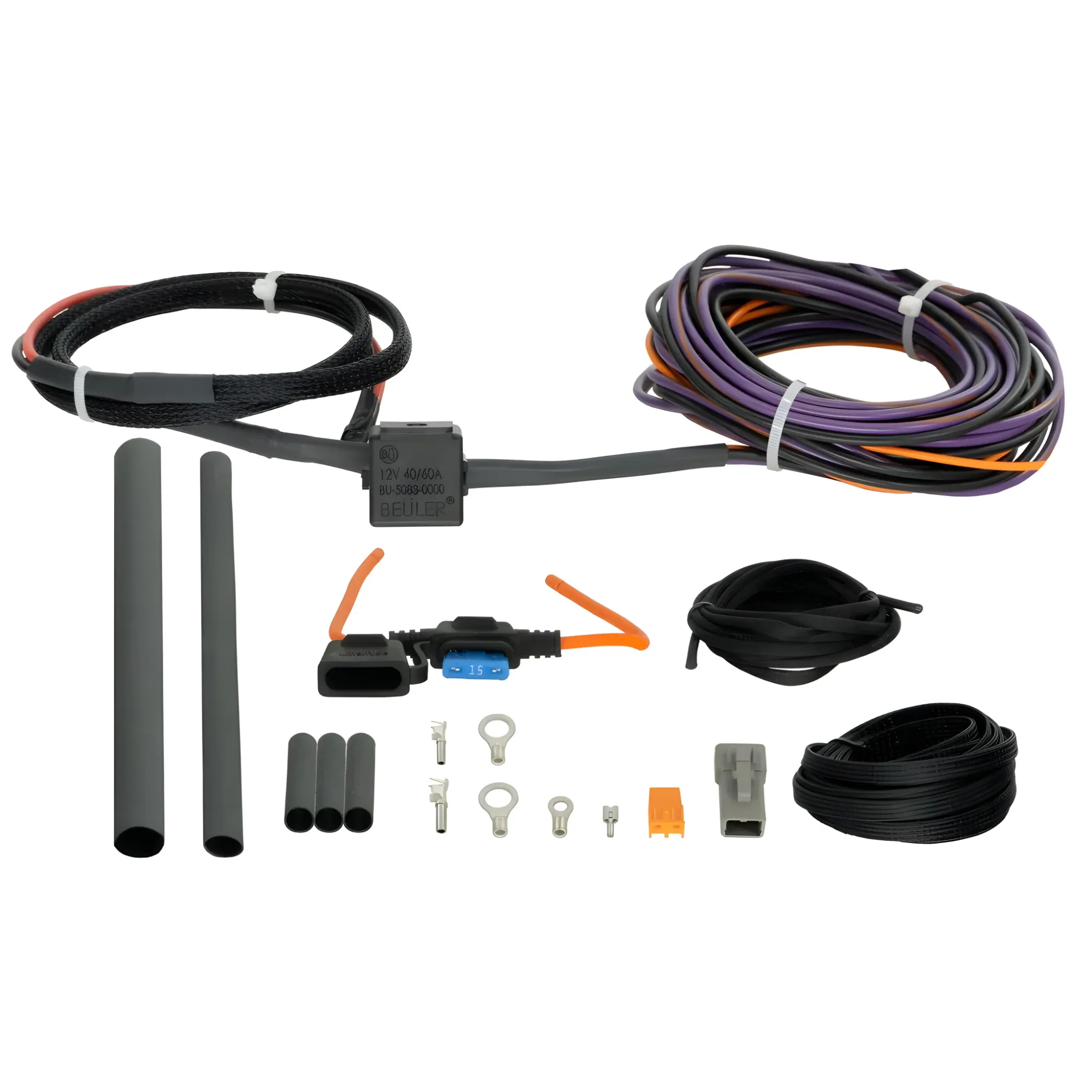

The Nitrous Outlet DIY Bottle Stand Alone Dedicated Fuel System Pro Wiring Harness is designed to provide a quick and easy wiring solution to installing a dedicated fuel system.
�
The most time consuming and complicated part of the wiring process is eliminated with the detailed instructions, colored wiring schematics, pin out sheet, and universally mounted prewired relay.

Installation requires 7 easy steps

Step 1:�Determine location and mount the relay.
Step 2:�Route the main power wire and ground wire.
Step 3:�Route the wiring to the system components.
Step 4:�Cover the wire with the protective expandable wiring loom.
Step 5:�Cut the wire to length.
Step 6:�Terminate the wiring ends and connect to the system components.
Step 7:�Connect power and ground source and check operation.
