1200 rwhp capable return fuel system made with top shelf components. The feed line is split by our y-block, fed into the back of the fuel rails, then the front of each rail is connected to our F2i fuel pressure regulator.
Requires same year GT500 level sender.

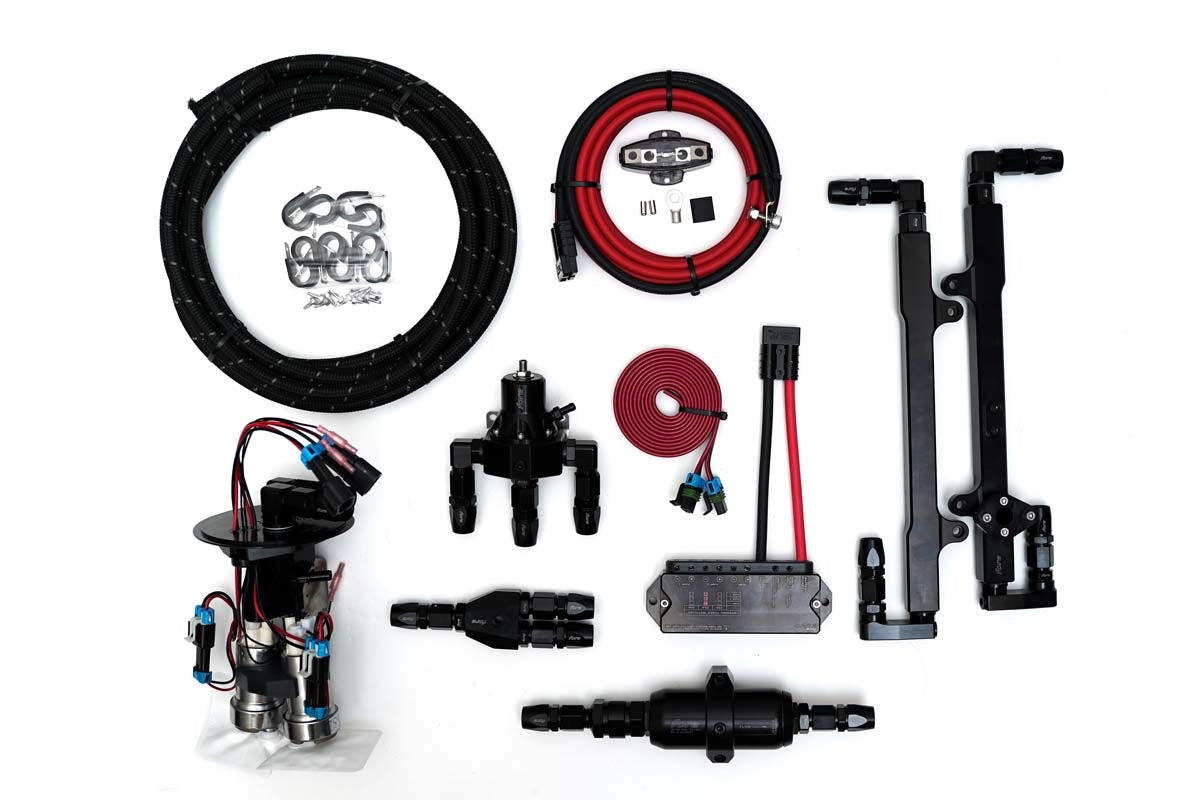

INCLUDES
Requires same year GT500 level sender.
- Fuel rails routed in PARALLEL
- Fuel pressure regulator mounted AFTER fuel rails
INCLUDES
- S197-S Fuel Pump Module (dual pump)
- F2i Fuel Pressure Regulator
- 2005-2010 Mustang GT Monoblock Fuel Rails
- Compact 2-1 Y-block
- 88mm Inline Fuel Filter
- FCV Checkvalve
- All fittings, hose, and hardware necessary to complete typical fuel line plumbing
- 30' of fuel line and 14 matching hose ends (your choice of fuel hose type)
- Qty 6, straight o-ring fittings
- Qty 6, 90 degree billet low profile fittings
- Qty 5, -8 AN to -8 o-ring fittings
- Qty 2, 0.6" o-ring extensions
- Qty 10, -8 hose straps with stainless mounting screws
- Qty 2, 1/8 NPT plugs
FITS:
- Use on 2005-2010 Mustang GT
- 2007-2010 Mustang GT requires equivalent year GT500 level sender
- May require GT500 fuel tank access panel
- Must have access to one end of each fuel rail, contact for fitment verification.
TI Automotive (and Walbro) fuel pumps are sold only with TI Automotive’s warranty. Currently, TI Automotive does not have a warranty on their high performance parts.
