Fore Innovations will provide detailed assistance on the function of supplied components; however, we will not provide assistance with integration (to the OE harness), tuning, or elimination of alarm codes or CELs. A professional installation and custom tune is required for this fuel system to function properly.

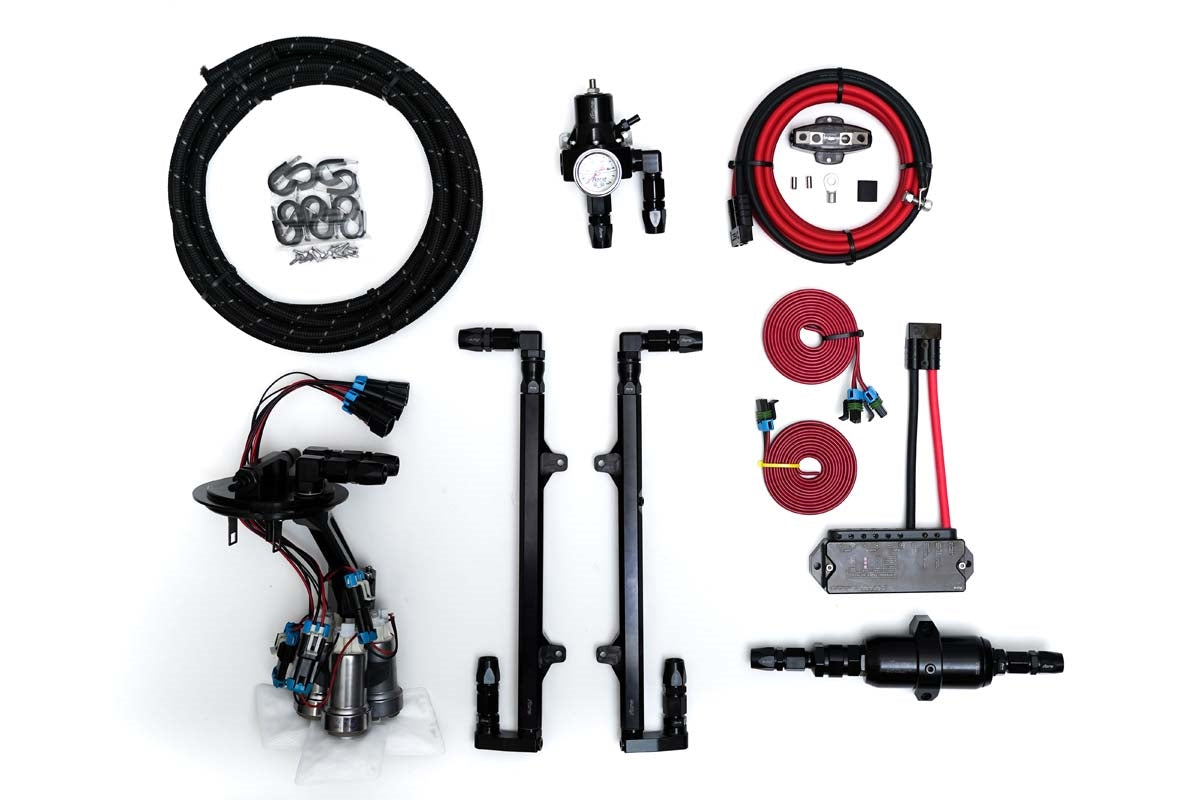

- 1300+ whp
- Fuel rails in SERIES
- Regulator AFTER fuel rails
- F-150 Fuel Pump Module (triple pump)
- F2i Fuel Pressure Regulator
- 2011-2017 Coyote Billet Fuel Rails
- 88mm Inline Fuel Filter
- All fittings, hose, and hardware necessary to complete typical fuel line plumbing:
-Qty 10 compression style billet hose ends
-Qty 2, 1.25" fuel rail extensions
-Qty 5, straight AN to o-ring fittings
-Qty 3, billet low profile 90º AN to o-ring fittings
-Qty 2, billet low profile 180º fittings
-Qty 1, low profile o-ring plug
-Qty 10, -8 hose straps with stainless mounting screws
-Qty 2, 1/8 NPT plugs
This is a stand alone fuel system. Professional installation and a custom tune is required. Qualified installers and tuners must be able to interface to the OE harness and FPDM, understand proper component placement, hose routing, and deliver the vehicle with factory-like pump prime/on/off logic with no error codes. Fore Innovations will supply basic system schematics and detailed component level instructions, and can provide troubleshooting of the performance and function of our system and components.
This fuel system generates substantially more heat and capacity than the original fuel system. The high powered fuel pumps make much more heat than the factory pump and the composite fuel tank construction acts as an insulator and stores heat. Additionally, the shape of the factory fuel tank limits the pickup capacity of this fuel system. The user (driver) must keep more fuel (than normal) in the tank at all times to minimize heat damage and ensure adequate fuel pickup.
FITS:
2015-2017 F-150 (Coyote only verified)
TI Automotive (and Walbro) fuel pumps are sold only with TI Automotive’s warranty. Currently, TI Automotive does not have a warranty on their high performance parts.
