1200+ rwhp capable return fuel system with efficient hose routing. The rails are in a series installation with the fuel pressure regulator AFTER the rails. We recommend this setup for centrifugal and turbo setups.
INCLUDES
- Requires same year GT500 level sender.
- Fuel rails routed in SERIES
- Regulator routed AFTER rails

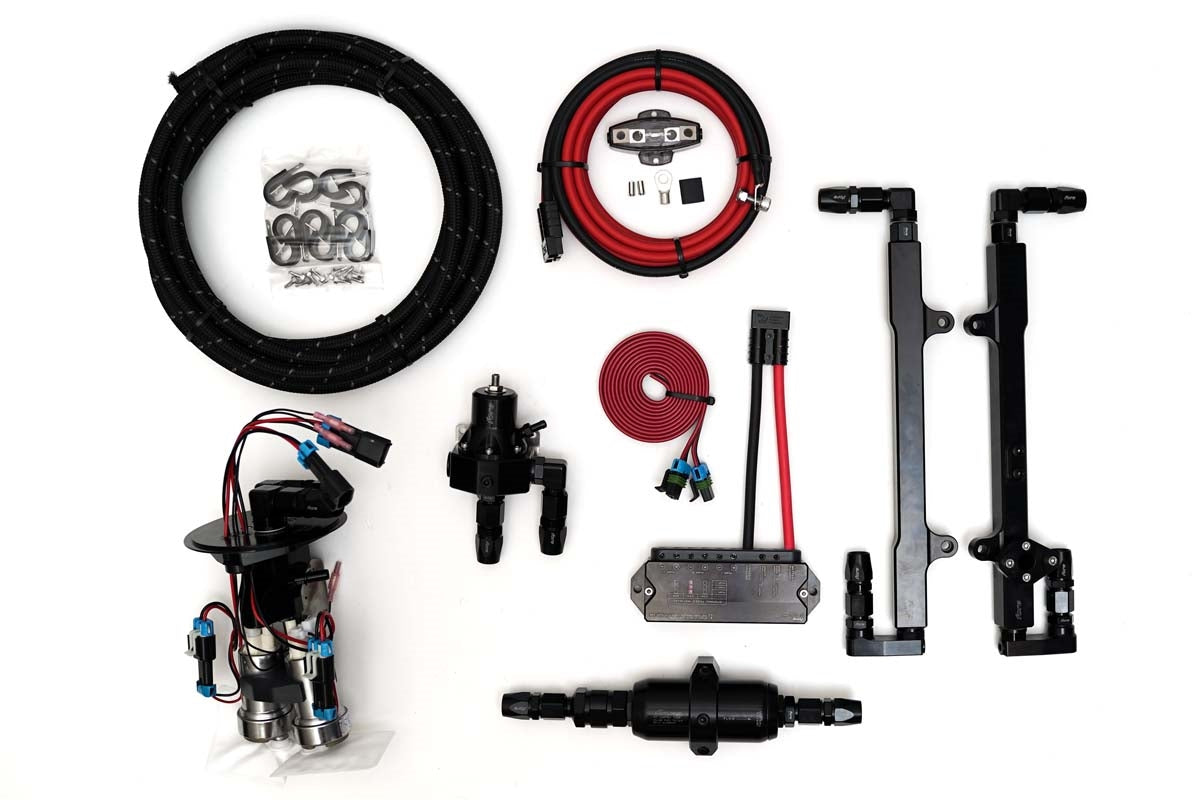

INCLUDES
- S197-S Fuel Hat (dual pump)
- 2005-2010 Mustang GT Monoblock Fuel Rails
- 88mm Inline Fuel Filter
- FCV Checkvalve
- F2i Fuel Pressure Regulator
- All fittings, hose, and hardware necessary to complete typical fuel line plumbing
- 30 feet of Fuel Line and 10 matching hose ends (your choice of hose type)
- Qty 7, low profile billet 90 degree fittings
- Qty 3, straight o-ring fittings
- Qty 2, 0.6" o-ring extensions
- Qty 1, -8 o-ring plug
- Qty 10, -8 hose straps with stainless mounting screws
- Qty 2, 1/8 NPT plugs
FITS:
- Use on 2005-2010 Mustang GT
- 2007-2010 Mustang GT requires equivalent year GT500 level sender
- May require GT500 fuel tank access panel
TI Automotive (and Walbro) fuel pumps are sold only with TI Automotive’s warranty. Currently, TI Automotive does not have a warranty on their high performance parts.
