• 10 Gallon Capacity


• Manufactured from 5052 .090" Thick Aluminum


• Tig Welded


• 15" Wide x 15" Deep x 10.25" Tall


• 1.5" Deep Sump


• 2x 12AN ORB Female Vent Bungs


• 2x 12AN ORB Female Outlet/Inlet Bungs


• Sump Feed & Return


• Flush Mount Mounting Tabs


• Texture Matte Black Powder Coated Finish


• Pressure Tested Quality Control Process


• Billet Low Profile Screw in Fuel Cell Lid


• Internal Baffling System to Aid Against Fuel Slosh


• Compatible with Gasoline, Diesel, & E85

Product Description:

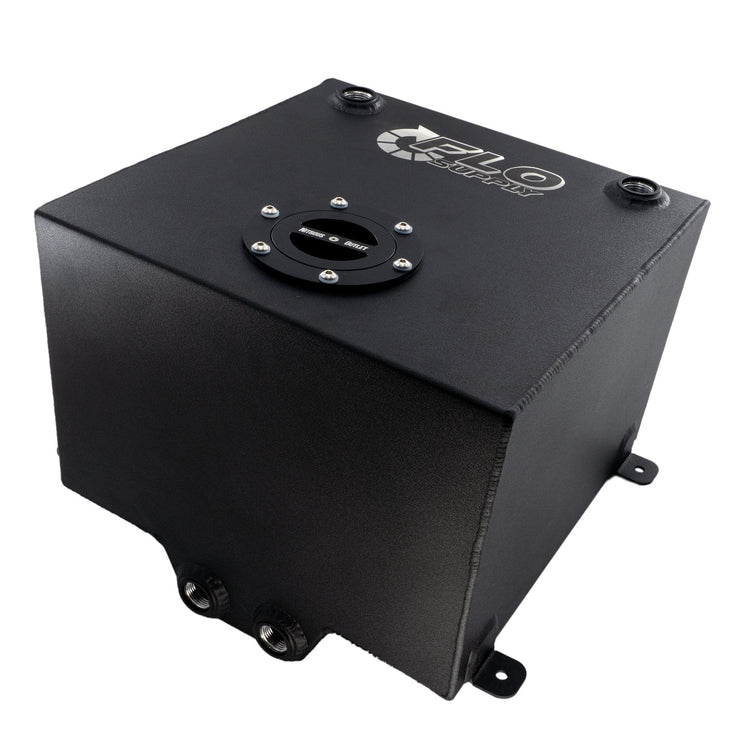

?Flo Supply Aluminum fuel cells are manufactured from 5052, .090 thick aluminum and tig welded for maximum strength. These lightweight fuel cells are designed to be compatible with gasoline, diesel, & E85 fuels. The built in Internal baffling system helps aid against fuel slosh. The 12AN ORB Female bungs provide the ability to install an assortment of different size fuel feed, fuel return, and tank vents fittings. Available with or with out a 0-90 ohm fuel level sending unit.�
