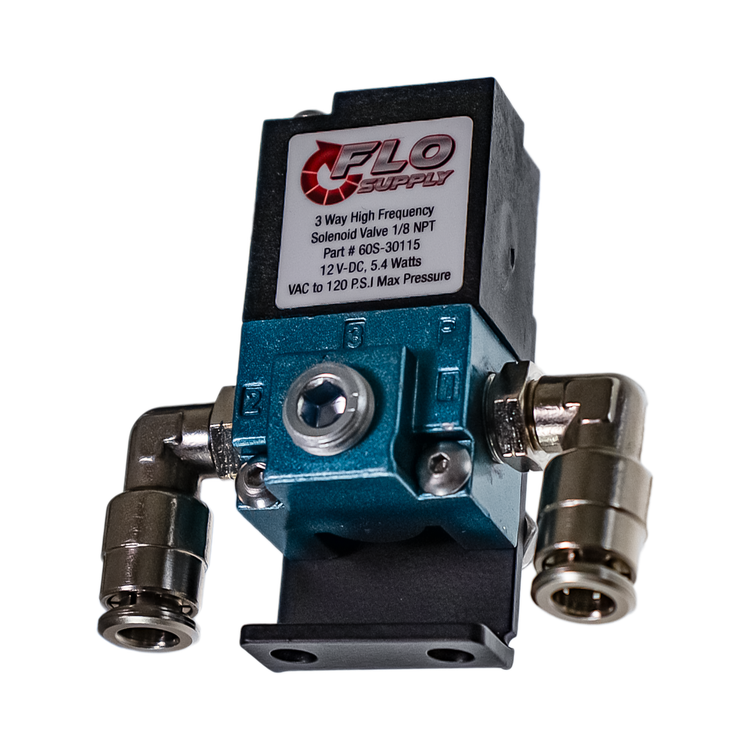

Flo Supply Single 3-Port Boost Control Solenoid Valve with 90 Degree Bracket & Fittings
- (1x) 90 Degree Solenoid Bracket
- (1x) Flo Supply 3 Port Boost Control Solenoid Valve - (3/2 Valve)
- (2x) 1/4" Hose to 1/8" NPT Male Swivel Elbow Fitting
Description:
Take precise control of your boost system with the Flo Supply 3 Port Boost Control Solenoid Valve Kit. Designed for reliability and fast response, this kit includes a high-performance 3-port solenoid valve, precision-machined mounting bracket, and the necessary fittings for easy installation. Ideal for electronic boost controllers and standalone ECUs, this setup gives you accurate and consistent boost management in high-performance automotive applications.
Solenoid Operation:
A 3/2 valve for a solenoid refers to a valve with three ports and two positions, it works as follows:
1. Ports:
3 ports are typically labeled as:
-
Port 1: Pressure supply port. -
Port 2: Output port. -
Port 3: Exhaust or return port.
2. Positions:
The valve can be in one of two states:
-
Position 1: Solenoid energized (activated), allowing flow between certain ports (for example, from 1 to 2, and 3 to exhaust). -
Position 2: Solenoid de-energized (inactive), switching the flow to connect different ports (for example, from 1 to 3, and 2 to exhaust).
Basic Function:
In a 3/2 solenoid valve, the solenoid controls the flow of air (or another fluid) between these ports. For example, it might direct the pressure from port 1 to port 2 when energized, and when de-energized, it switches to direct pressure from port 1 to port 3, while port 2 exhausts.
