Better throttle response and air/fuel charge distribution for high rpm engines.
- Fits the Freakshow Intake Manifold Dual 90 Snout.
- This Kit Includes:

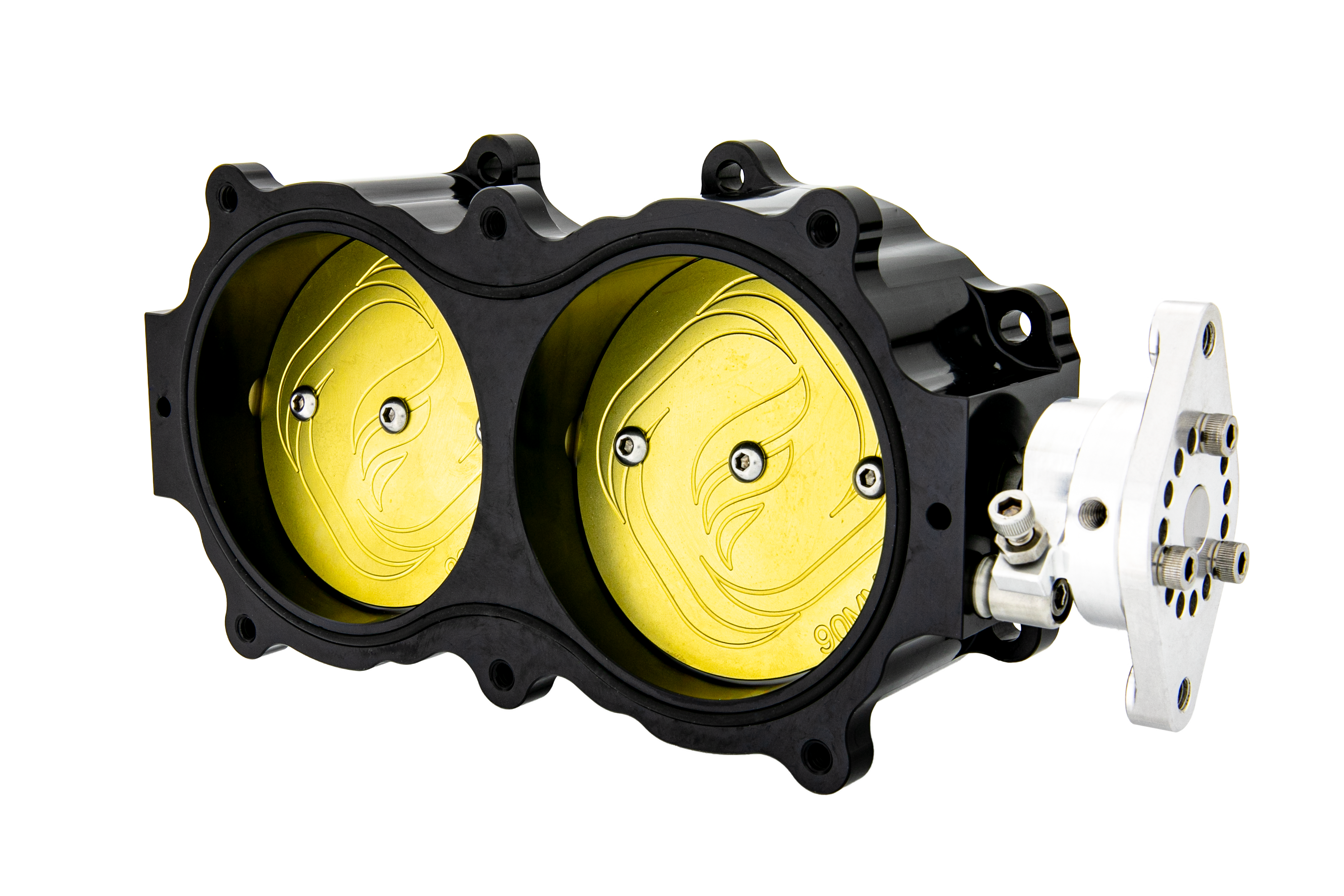

- Dual 90mm Throttle Body
- Billet Aluminum Adapter For 4.0? Single Inlet Piping
- Quick Seal Connector Clamps From Our Friends At Motion Raceworks.
- NOTE: Freakshow Snout is Sold Separately.
Description
FED’s complete dual 90mm throttle body kit includes Freakshow adapter and the brilliant quick seal connector system from Motion Raceworks®. The dual 90mm makes the iconic Freakshow intake manifold into one of FED’s most extreme induction performance systems for only serious racers. The first dual 90mm with dual 4.0? inlet provides more precise and responsive throttle response in big turbo applications and enhanced plenum resonance charging and cylinder to cylinder distribution.
Our friends at Motion Raceworks® supply their Quick Seal Connector clamps for the 4? single inlet Kit and our 3.5? dual inlet (FED Item 251028). The 3 piece clamp assembly is o-ring sealed and features Quick Pins for easy installation and service.
Specifications
| Description | Specification | Part Number |
| Throttle Body | FED Billet Dual 90mm Throttle Body – Anodized Black Finish | 251009 |
| Clamps | Quick Seal Connector Kit 4? w/ Clamp and Weld Flanges 21-140– Motion Raceworks | 251031 |
| Throttle Body Adapter – Machine Finish | Billet Dual 90 Throttle Body Adapter – 4.0? Single Inlet – Machine Finish | 251020 |
| Throttle Body Adapter – Black Anodized Finish | Billet Dual 90 Throttle Body Adapter – 4.0? Single Inlet – Black Anodized Finish | 251021 |
| Socket Cap Screw | Hex Drive Grade 18-8 Stainless Steel Socket Cap Screws | |
| NOT INCLUDED | NOTE: Freakshow Dual 90mm Snout is NOT included with this kit and can be bought separately: item 952162(Machine Finish) or item 952163(Black Anodized Finish). | |
