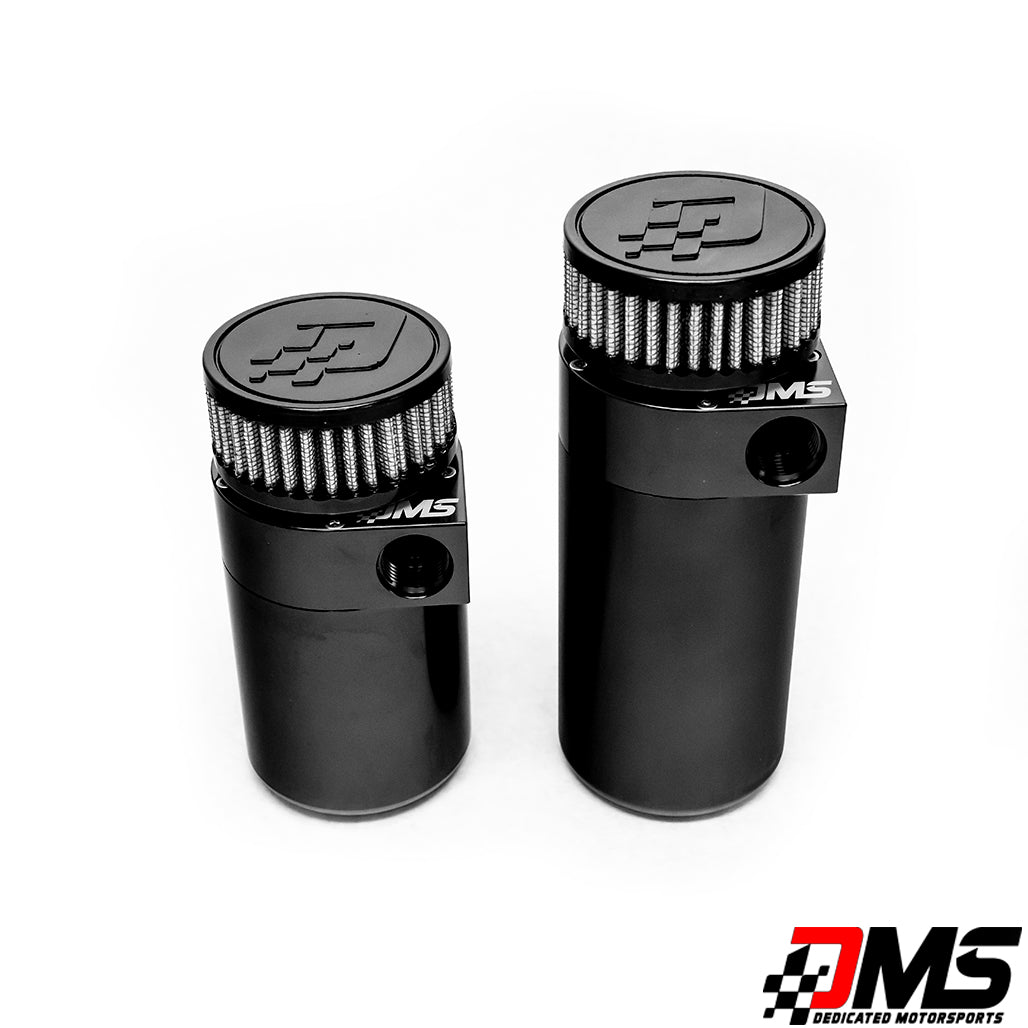

DMS -10AN High Flow Billet Catch Can

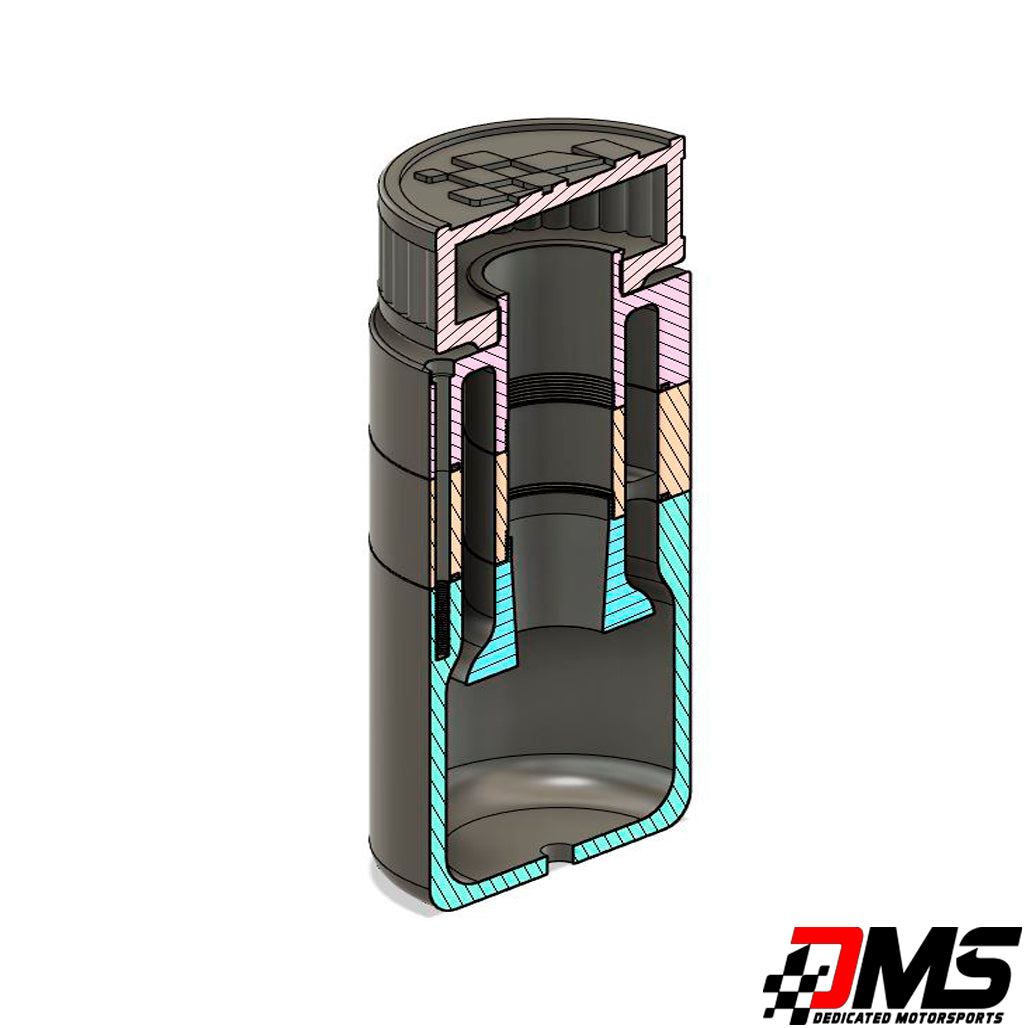

Engineered to harness crankcase pressure, our DMS catch can uses high air velocity to effectively separate oil droplets from your engine’s crankcase air. As the oil/air mixture enters the can, it is forced into a circular path, encouraging oil droplets to adhere to the inner walls while clean air escapes through a dedicated outlet. A central velocity reduction chamber further decelerates the exiting air, allowing heavier solids to drop out before the final breather element.

Key Features:

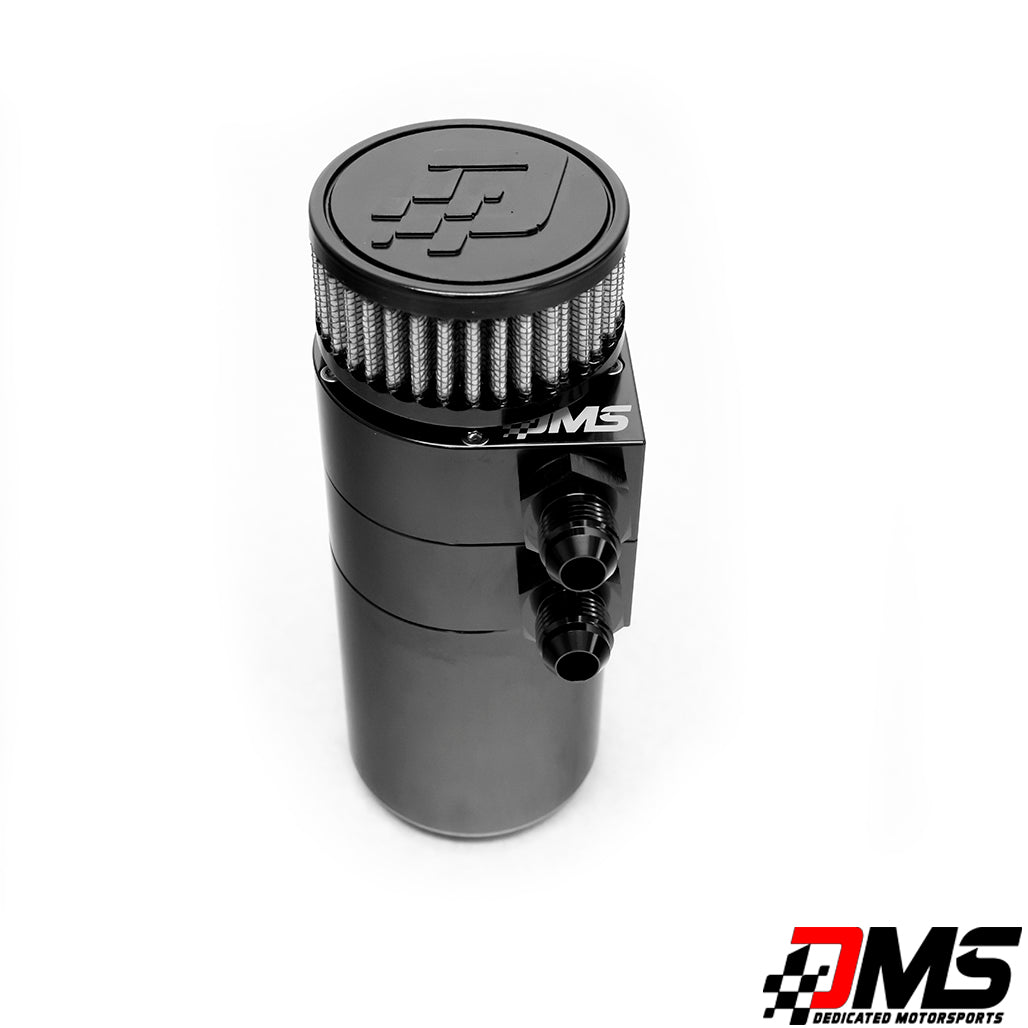

• Versatile Inlet Options:
  Standard -10 ORB inlet, adaptable to -6AN, -8AN, or -10AN (select your option from the dropdown).

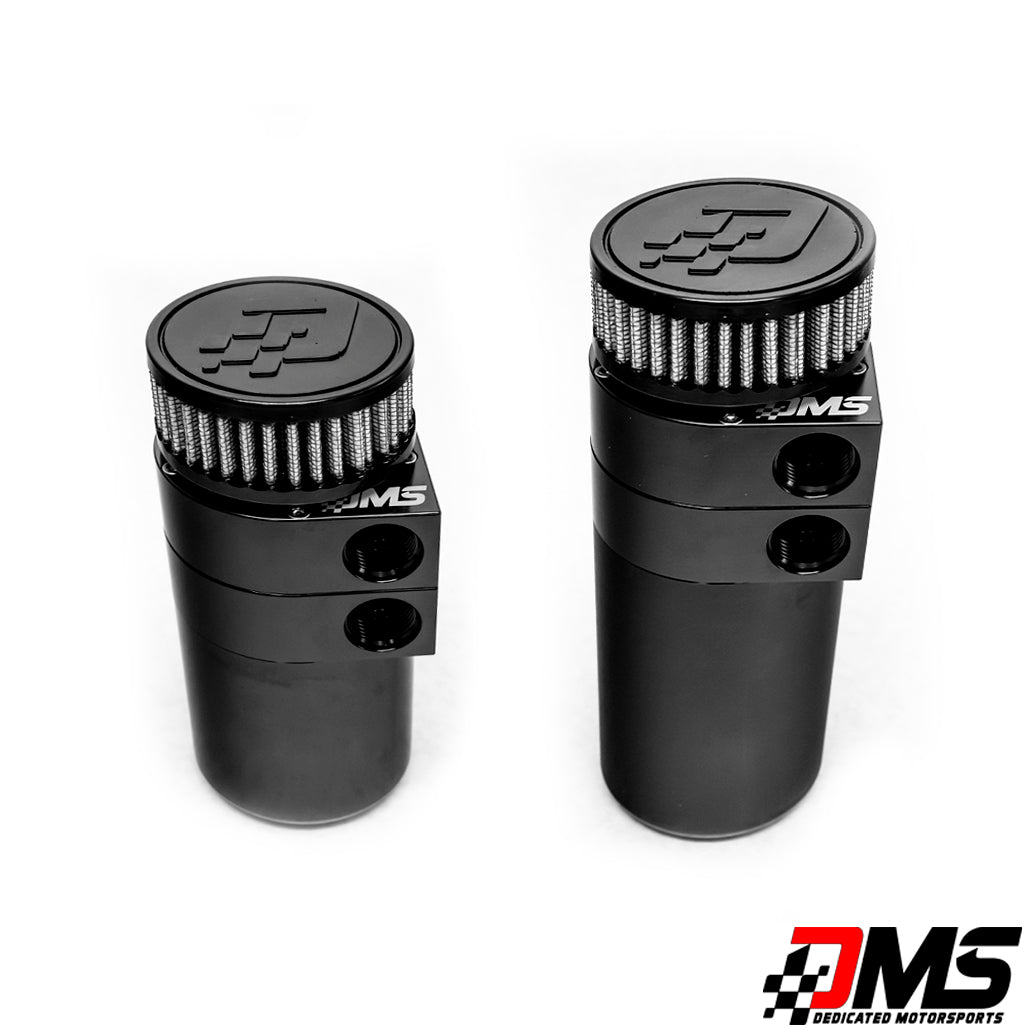

• Dual Base Height Options:

  • 90mm Base: Holds up to 7 ounces of liquid.
  • 130mm Base: Holds up to 12 ounces of liquid.

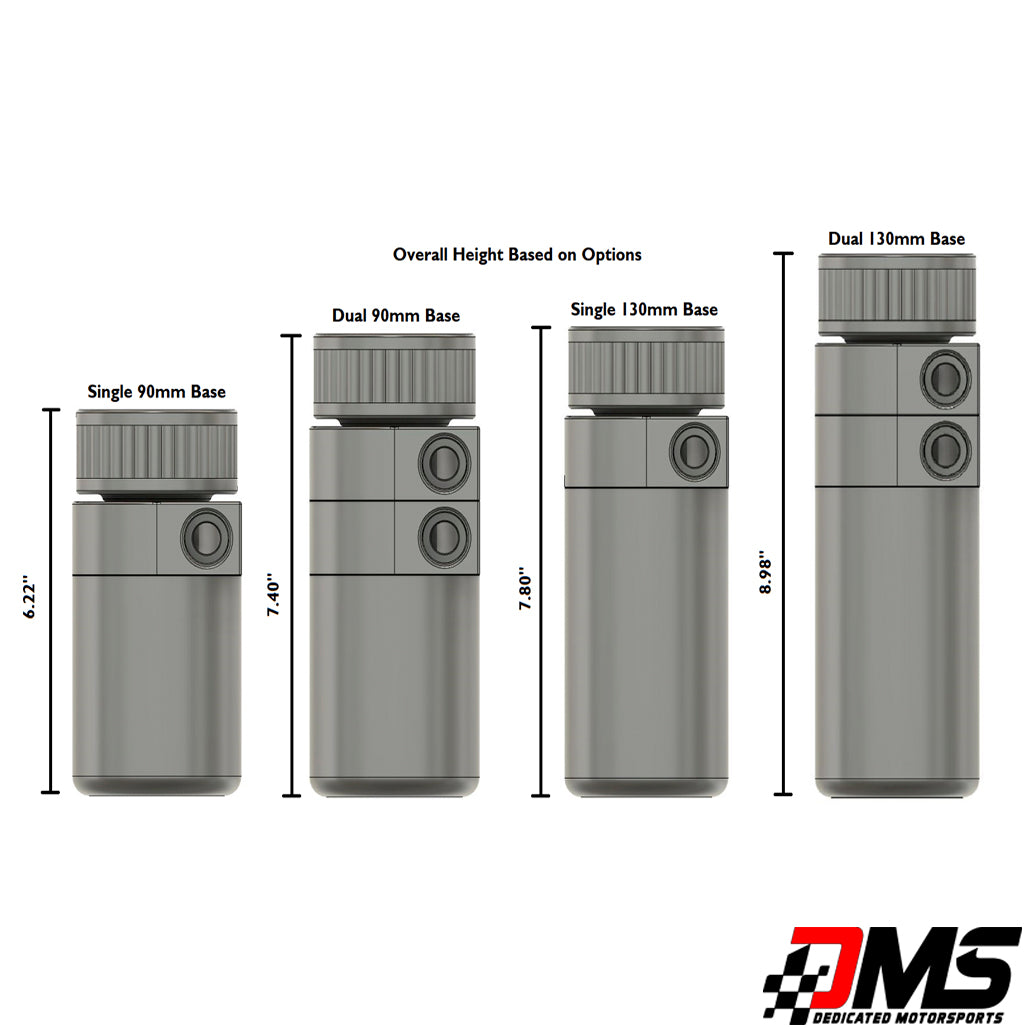

    (Refer to our dimensions image for overall height details.)

• Flexible Mounting Options:

  1. Use the pair of M6x1.00 threaded holes on the top to mount a custom bracket.
  2. Employ a basic Adel clamp for a cost-effective installation.
  3. Opt for the DMS Billet Aluminum clamp, featuring M6x1.00 threaded holes on the backside for added security.

Enhance your engine’s performance and reliability by reducing harmful oil contamination with the DMS High Flow Billet Catch Can.
