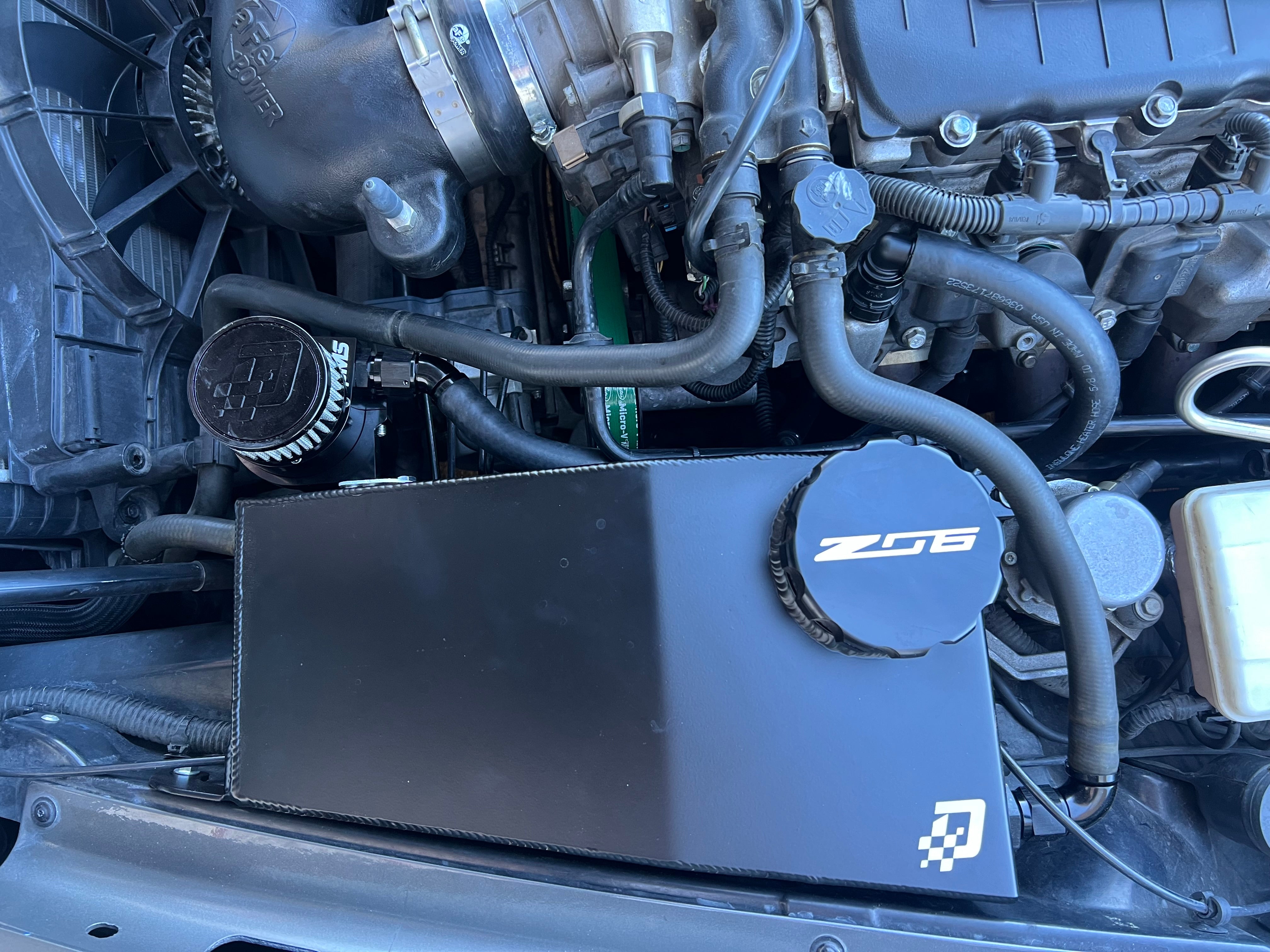

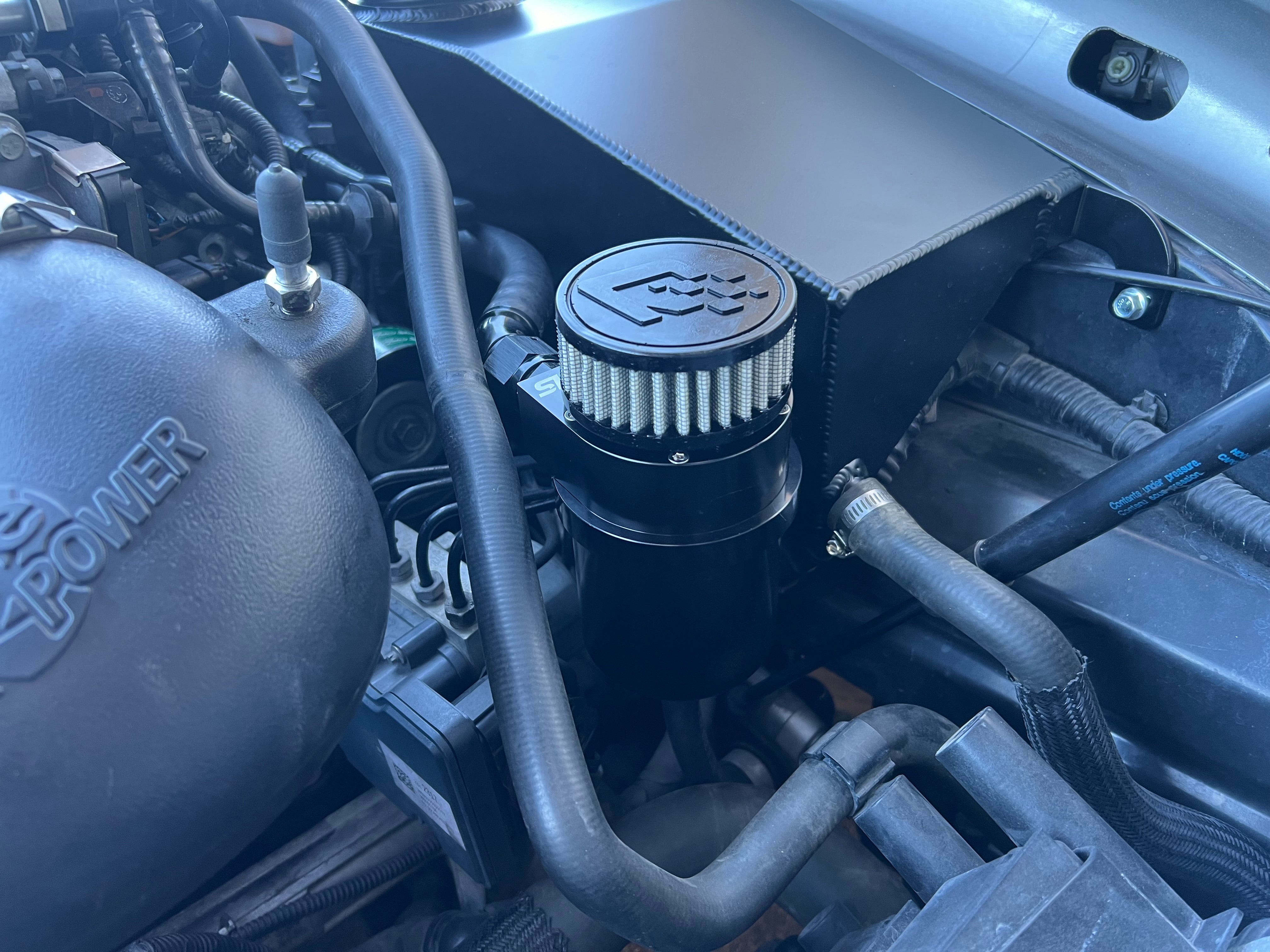

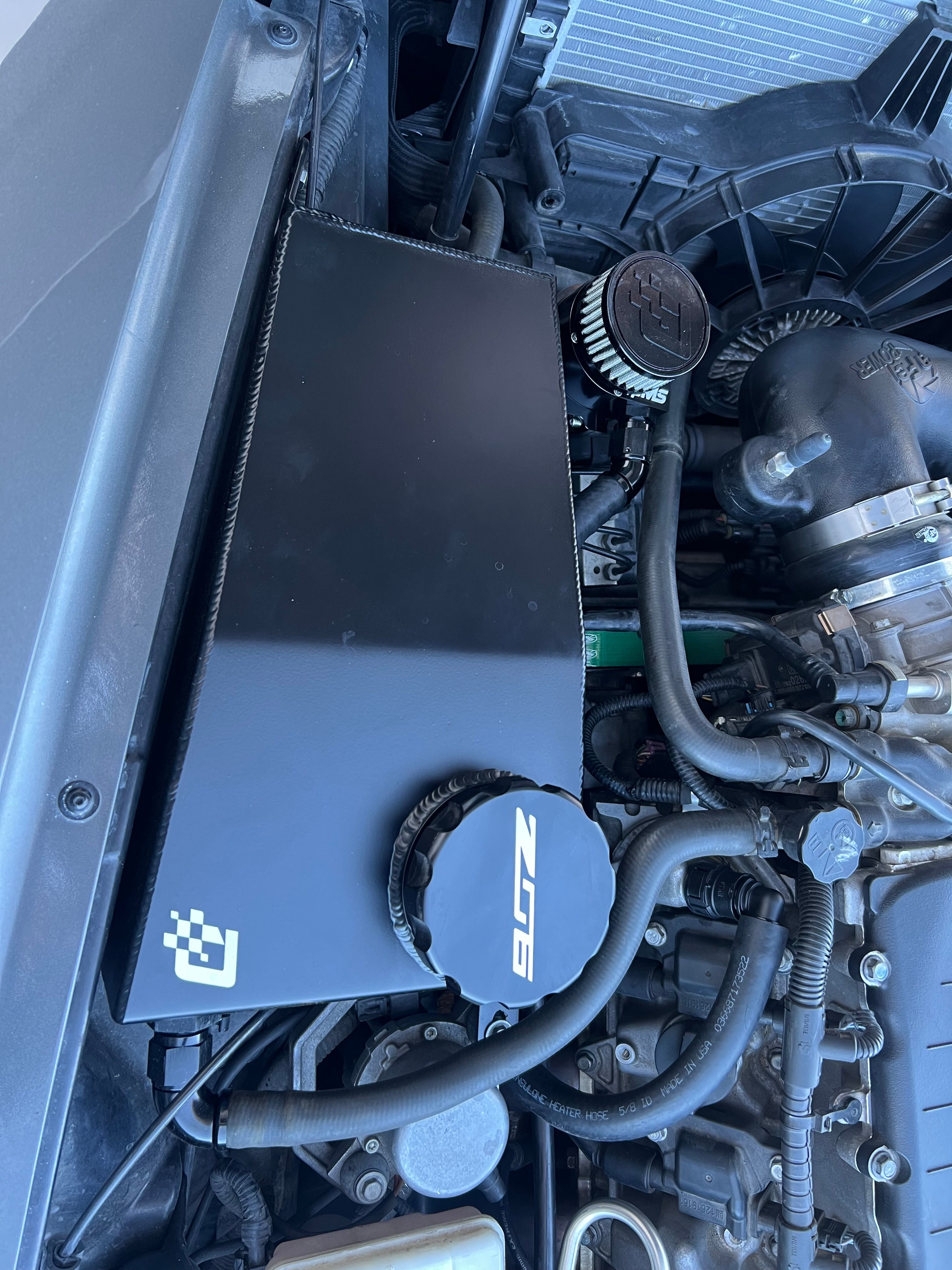

C7 Engine Bay Tank The DMS engine bay tank is designed specifically for the C7 Corvette. It holds ~2 Gallons of additional coolant and provides a 2.5 inch filler cap. This is a great way to combat high intake air temps with your supercharged car whether it be a LT4, Magnuson or Whipple. The inlet fitting (top side) is a -12an ORB and comes standard with a -10 adapter fitting for the stock LT4 lines, the outlet (bottom side) is a 3/4 inch high flow hose barb. Shown in the second photo is an optional -12an top line, this will include our billet -12an adapter for the coolant manifold, -12an orb for the tank and a -12an line. This version flows better. You will also see photos of our billet -10an catch can. This catch can option will come with all the lines, fittings, brackets and hardware needed to bolt to the side of our engine bay tank. These tanks are CNC cut and hand tig welded in house out of 5052 .125" aluminum and come standard powdered coated in SATIN black. Install time is 30 min to an hour depending your on skills. For custom cap engraving, please email sales@dedicatedmotorsports.com with your order number along with an example of what you would like engraved. Please allow 1 extra business day for completion. The higher quality example given, the faster the engraving process will go!
